Install Waydroid to Run Android OS & Apps in Ubuntu 22.04, 23.10

This is beginner’s guide shows how to install and setup Waydroid to run full Android system as well as Android applications in Ubuntu.

I’ve written about this by using Anbox, which is however no longer in active development.

This is a re-write with free and open-source ‘Waydroid’, which is a container-based approach to run a minimal customized Android system image based on LineageOS.

Android OS in my Ubuntu 22.04 desktop

This tutorial is tested and works on Ubuntu 22.04, though Ubuntu 20.04, Ubuntu 23.10 are also supported! Hardware specs include:

  • CPU: Intel i5-10400.
  • GPU: Intel HD 630.

Step 1: Install Waydroid

Waydroid is easy to install in Ubuntu/Debian based systems, through its official apt repository.

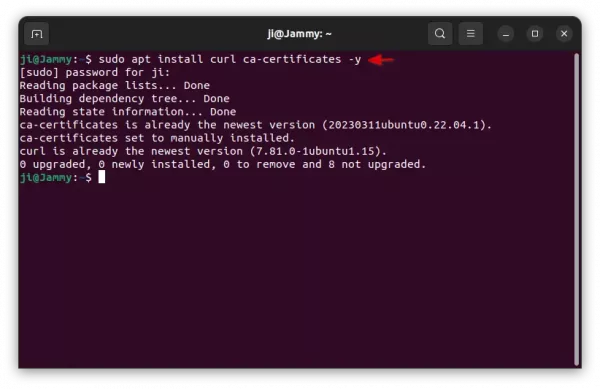

1. First, press Ctrl+Alt+T on keyboard to open terminal. When it opens, run command to install required packages:

sudo apt install curl ca-certificates

sudo command needs password authentication, but with no asterisk feedback. Just type in mind and hit Enter.

2. Then, run command to download the official script, and run it to add Waydroid repository into your system.

curl https://repo.waydro.id | sudo bash

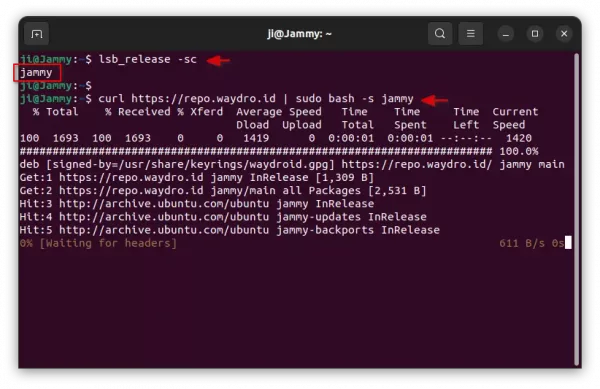

In case the script does not work properly, find out your OS code manually via either lsb_release -sc or cat /etc/os-release command. Then, run command below instead:

curl https://repo.waydro.id | sudo bash -s jammy

Replace jammy depends on your system code-name. So far, it supports focal, jammy, lunar, mantic, bookworm, bullseye, sid

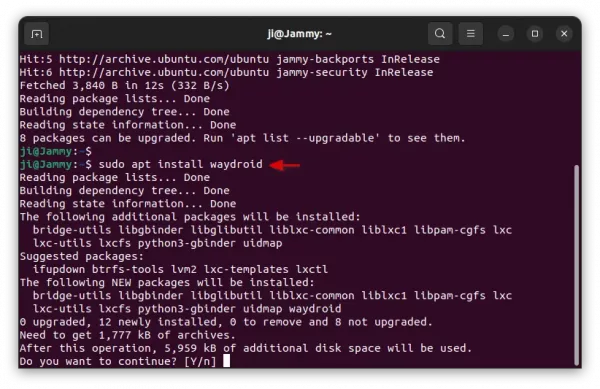

3. Finally, run command to install Waydroid:

sudo apt install waydroid

Try sudo apt update first to refresh cache if the command output package not found

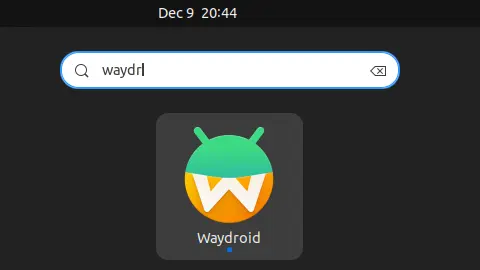

Once successfully installed the app, you should be able to launch it from start menu, applications menu, or any other app launcher depends on your desktop environment.

Step 2: Initialize

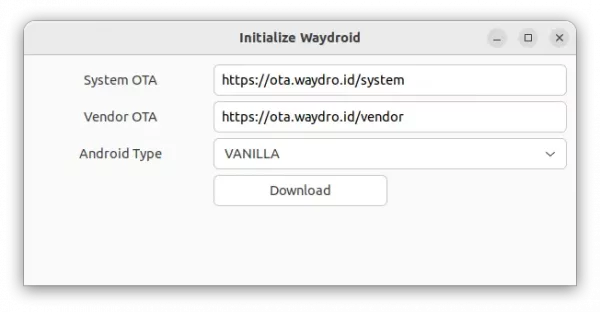

The first launch of the app, will launch the “Initialize Waydroid” dialog.

The default options are usually OK. But, you may have to choose Android type before getting start:

  • VANILLA – as name indicates, it’s vanilla ROM, without Google Services/Apps.
  • GAPPS – come with Google Services/Gapps.

Next, click Download button will automatically download & install ROM and required packages. In my case, it downloaded & installed Android 11.

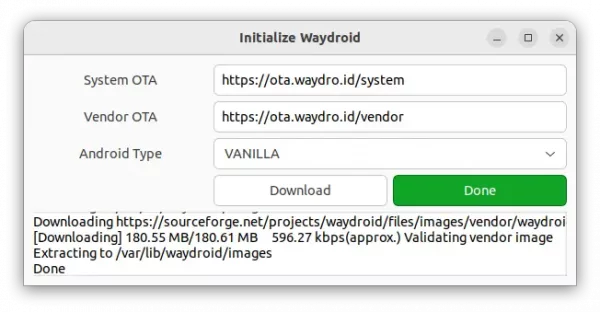

When done successfully, it will show you something like the screenshot shows you.

Step 3: Start Android system, resize & move window

After clicking “Done” button in last step, start Waydroid again will launch an Android screen on your desktop.

However, it by default starts in full-screen (or may-be called maximized) mode.

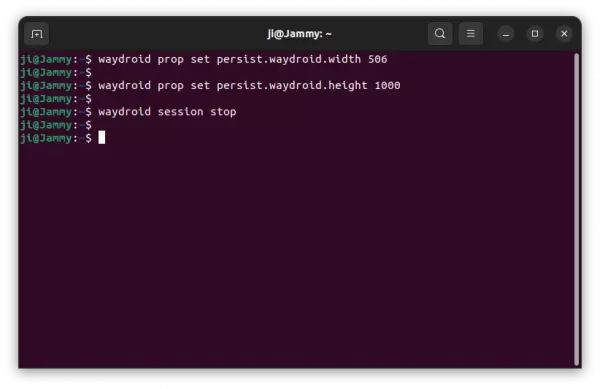

To change the Android screen size, open terminal (Ctrl+Alt+T) in the Ubuntu host, and run commands:

waydroid prop set persist.waydroid.width 506
waydroid prop set persist.waydroid.height 1000

The 2 commands will set the screen width and height to 506 x 1000. Change the numbers accordingly, and apply by running command to stop current Android session (then re-launch).

waydroid session stop

The Android window is borderless in my case. To move the window, you may either press & hold Super (Windows logo) key then dragging, or press Alt+F7 and then move mouse cursor without mouse clicking.

Step 4: Install & Remove Android Apps

If you selected ‘VANILLA’ while initializing Waydroid, then there’s no app store in the Android to install applications.

In the case, you may download any APK file from the web, or download & install the free open-source F-Droid in the host (Ubuntu in the case) then use it in Android screen to install apps.

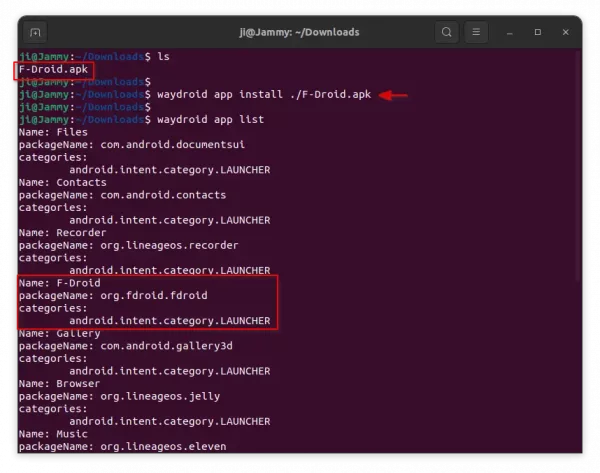

To install APK file from host user’s ‘Downloads’ folder, just run command in terminal (Ctrl+Alt+T):

waydroid app install ~/Downloads/file_name_here.apk

And, verify by listing all installed Android apps:

waydroid app list

Waydroid will create app shortcuts for all installed Android apps, through .desktop files under “.local/share/applications”. Meaning, you can search & launch Android apps directly from host machine (Ubuntu).

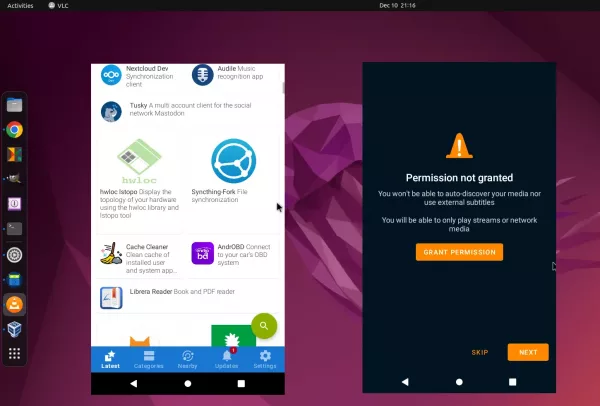

Launch ‘F-Droid’ Android app in Ubuntu

And, it supports launching multiple instance of Android apps at the same time out-of-the-box.

To remove an app, either do it in the Android screen, or run command in Ubuntu host:

waydroid app remove packageName

Replace packageName according to waydroid app list output, e.g., org.fdroid.fdroid.

Step 5: Share files between Ubuntu Host and Android

To share files between host and the Android system, simply run single command in Ubuntu host:

sudo mount --bind ~/Documents/vboxshare/ ~/.local/share/waydroid/data/media/0/Documents/share

In the command, you need to replace:

  • ~/Documents/vboxshare/ – ‘vboxshare’ sub-folder in Ubuntu host.
  • ~/.local/share/waydroid/data/media/0/Documents/share – ‘share’ sub-folder of Documents in Android.

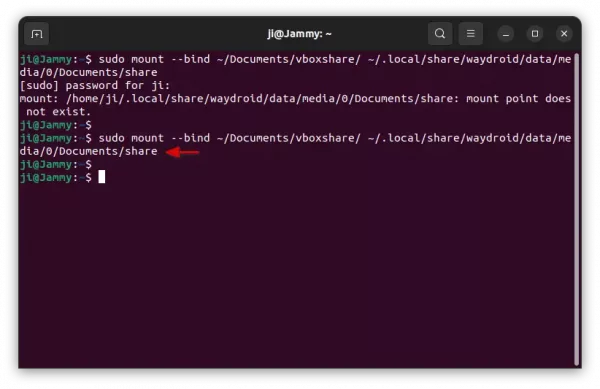

You need to first create the share folder if not exist, or it will show mount point does not exist as the screenshot below shows you.

Uninstall Waydroid:

First, stop the session and container, which maybe useful for reloading settings, run commands:

waydroid session stop
sudo waydroid container stop

To remove Waydroid, use command:

sudo apt remove --autoremove waydroid

Then, remove leftovers by running command:

sudo rm -rf /var/lib/waydroid ~/waydroid ~/.share/waydroid ~/.local/share/applications/*aydroid* ~/.local/share/waydroid

If you don’t want to install it back any more, then, also remove the source repository by deleting the sources & key files:

sudo rm /etc/apt/sources.list.d/waydroid.list /usr/share/keyrings/waydroid.gpg

For more about Waydroid, see the official document.
